Thermal Imaging Cameras piav qhia

Thermal imaging koob yees duab yog cov cuab yeej uas txhais cov thermal zog (tshav kub) rau hauv lub teeb pom kev txhawm rau txheeb xyuas ib qho khoom lossis qhov chaw. Cov duab tsim tau hu ua thermogram thiab raug tshuaj xyuas los ntawm cov txheej txheem hu ua thermography. Thermal imaging koob yees duab yog cov khoom siv sophisticated uas ua cov duab ntes thiab tso rau ntawm ib qho screen. Cov duab no tuaj yeem siv rau kev kuaj mob tam sim lossis ua tiav los ntawm cov software tshwj xeeb rau kev soj ntsuam ntxiv, raug thiab tshaj tawm. Thermal imaging koob yees duab ntsuas kub mus rau qib tom ntej; es tsis txhob tau txais tus lej rau qhov kub thiab txias koj tau txais daim duab qhia qhov kub ntawm qhov sib txawv ntawm qhov chaw.

Lub Koob Yees Duab Thermal Pom Dab Tsi Pom?
Lub teeb pom kev yog qhov peb pom nyob ib puag ncig peb txhua hnub. Nws tsuas yog ib feem ntawm electromagnetic spectrum uas peb tuaj yeem pom. Lub teeb pom kev tsuas yog siv thaj tsam me me hauv cov hluav taws xob hluav taws xob thiab hluav taws xob infrared (IR) sawv cev rau feem pua ​​​​loj dua. Yog tias peb xav pom dab tsi tshwm sim hauv lwm qhov ntawm cov spectrum peb xav tau cov cuab yeej tshwj xeeb.
Txhua yam khoom nqus, xav txog thiab qee zaum kis tau lub zog ntawm ntau qib. Cov ntaub ntawv sib txawv yuav muab cov cua sov los yog lub zog txias ntawm cov nqi sib txawv. Nws yog lub zog no uas tuaj yeem tshawb pom los ntawm cov khoom siv infrared thiab tso tawm ua cov duab.

Thermal Imaging Camera Daim Ntawv Thov thiab Kev Siv
Keeb kwm tsim rau kev siv tub rog thaum Tsov Rog Kauslim, cov koob yees duab thermal tau tsiv mus rau lwm qhov chaw thiab tau pom ntau yam siv. Cov neeg tua hluav taws siv lawv saib los ntawm cov pa luam yeeb, nrhiav neeg thiab txheeb xyuas qhov kub ntawm qhov hluav taws kub. Tub ceev xwm siv thev naus laus zis los tswj cov haujlwm saib xyuas, nrhiav thiab ntes cov neeg raug liam, tshawb xyuas qhov xwm txheej ua txhaum cai thiab ua haujlwm tshawb nrhiav thiab cawm. Cov kws kho hluav taws xob tu cov kws tshaj lij nrhiav cov pob qij txha thiab cov khoom siv los tshem tawm qhov ua tsis tiav. Thaum thermal rwb thaiv tsev ua yuam kev, cov kws tsim kho tsev tuaj yeem pom cov cua sov los txhim kho qhov ua tau zoo ntawm cov cua txias lossis cua sov. Kev ua ub no ntawm lub cev, xws li kub taub hau, hauv tib neeg thiab lwm yam tsiaj ntshav sov tuaj yeem raug saib xyuas nrog cov duab thermographic. Lawv kuj yog cov cuab yeej siv los ntawm cov neeg soj ntsuam hauv tsev.

Thermal Imaging Lub Koob Yees Duab Nta
Thermal imaging koob yees duab tuaj yeem yuav nrog qhov tsawg kawg nkaus ntawm cov yam ntxwv uas tsuas yog nyeem qhov ntsuas kub ntawm qhov chaw ruaj khov crosshairs ntawm cov zaub lossis nrog ntau yam nta uas tso cai rau tus neeg siv xaiv ntau yam crosshairs txav tau thiab kos cov kev sib piv ntawm lawv los qhia qhov siab, qis thiab nruab nrab kub ntawm cov zaub. Thermal imaging koob yees duab muaj cov neeg siv xaiv ntau xim palettes, xws li dub / dawb, hlau los yog zaj sawv. Cov hlau palette feem ntau yog siv los ntawm cov neeg soj ntsuam hauv tsev. Cov xim dub / dawb palette pab txheeb xyuas cov ntsiab lus ntawm cov duab, thiab zaj sawv palette muaj qhov zoo tshaj plaws thermal rhiab heev rau kev pom qhov sib txawv ntawm qhov kub thiab txias. Saib cov duab hauv qab no ntawm qee cov xim palettes.

Dab tsi los nrhiav hauv Thermal Imaging Camera
Muaj ntau yam khoom siv uas ua rau ob qho tib si zoo thiab tus nqi ntawm lub koob yees duab thermal. Qhov thib ob tseem ceeb tshaj plaws yog qhov kev daws teeb meem ntawm lub teeb thiab thermal rhiab heev.
Qhov kev daws teeb meem ntes piav qhia txog cov pixels. Cov kev daws teeb meem tshaj plaws yog 160 x 120, 320 x 240 thiab 640 x 480 pixels. Lub 320 x 240 detector tsim cov duab tsim ntawm 76,800 pixels. Txij li txhua pixel muaj qhov kub thiab txias cuam tshuam nrog nws uas yog 76,800 cov ntaub ntawv ntsuas kub. Cov kev daws teeb meem siab dua kuj tsim cov duab pom tseeb dua.
Thermal rhiab heev yog qhov sib txawv ntawm qhov kub me tshaj plaws uas lub koob yees duab tuaj yeem ntes tau. Qhov rhiab heev ntawm 0.05 ° txhais tau hais tias lub koob yees duab tuaj yeem paub qhov txawv ntawm ob qhov chaw nrog tsuas yog tsib-pua pua ntawm qhov ntsuas kub sib txawv.
Lwm qhov tseem ceeb uas yuav tsum tau xav txog yog lub koob yees duab thermal imaging qhov ntsuas kub. Qhov ntau qhia tias qhov kub thiab txias tshaj plaws yog dab tsi uas lub koob yees duab ntsuas tau (-4 ° F txog 2200 ° F yog qhov raug).
Txhawm rau kom tau txais cov duab thermal zoo tshaj plaws los txheeb xyuas, muaj plaub qhov kev hloov kho uas tuaj yeem ua rau feem ntau lub koob yees duab: tsom, emissivity qhov chaw hloov pauv, qhov kub thiab txias qhov hloov pauv. Txhua qhov kev hloov kho no yuav tsum tau txiav txim siab thaum xaiv lub koob yees duab thermal.
Ib yam li lub koob yees duab txheem, lub lens ntawm lub koob yees duab thermal yuav tsum tau tsom mus txhim kho qhov pom tseeb ntawm daim duab. Feem ntau lub koob yees duab tuaj yeem tsom los ntawm kev sib tw lub lens. Ntau lub koob yees duab sophisticated muaj lub laub khawm tsom.
Emissivity yog tus nqi hluav taws xob tawm ntawm ib yam khoom piv rau qhov zoo tshaj plaws emitter ntawm hluav taws xob thaum ob qho tib si nyob rau tib qhov kub thiab txias. Kho qhov emissivity yog qhov tseem ceeb thaum ntsuas qhov kub thiab txias los yog thaum sib piv qhov kub ntawm ob yam khoom sib txawv. Tsis yog txhua lub koob yees duab tso cai rau tus neeg siv nkag mus rau qhov ntsuas kub.
Qhov ntsuas kub ntawm qhov ntsuas kub tso cai rau tus neeg siv los them nyiaj rau cov khoom nyob ib puag ncig qhov ntsuas kub uas cuam tshuam rau ntawm ib qho khoom. Ib yam li emissivity, qhov ntsuas kub yog qhov tseem ceeb thaum ntsuas qhov kub thiab txias los yog sib piv ob yam khoom kub. Tsis yog txhua lub koob yees duab tso cai rau tus neeg siv nkag mus rau qhov ntsuas kub.
Thermal tuning lub koob yees duab yuav kho qhov ncua sij hawm los yog kub ntau yam uas lub koob yees duab pom thaum nyob rau hauv phau ntawv saib hom. Manual hom tso cai rau tus neeg siv los kho qhov ncua mus rau qhov xav tau ntau yam, thiab lub koob yees duab yuav ib txwm tso saib qhov ntsuas kub no. Kev siv hom phau ntawv yog qhov zoo tshaj plaws thaum siv los coj tawm qhov kub ntawm qhov sib txawv ntawm cov khoom raug saib.

Thermal Imaging Lub koob yees duab txwv
Vim tias lub zog thermal tuaj yeem cuam tshuam los ntawm qhov ci ntsa iab, lub koob yees duab thermal tsis tuaj yeem pom los ntawm iav. Cov koob yees duab cua sov tuaj yeem siv los sau cov ntaub ntawv hais txog sab hauv
 ntawm phab ntsa, tab sis lawv tsis tuaj yeem pom ntawm phab ntsa. Nws tseem ceeb heev kom paub tias lub koob yees duab thermal imaging yuav tsum tsis txhob siv los ua qhov kev txiav txim siab nkaus xwb uas muaj teeb meem tshwm sim. Kev siv lwm yam twj paj nruag yuav tsum tau siv ib txwm kom paub meej tias qhov teeb meem.

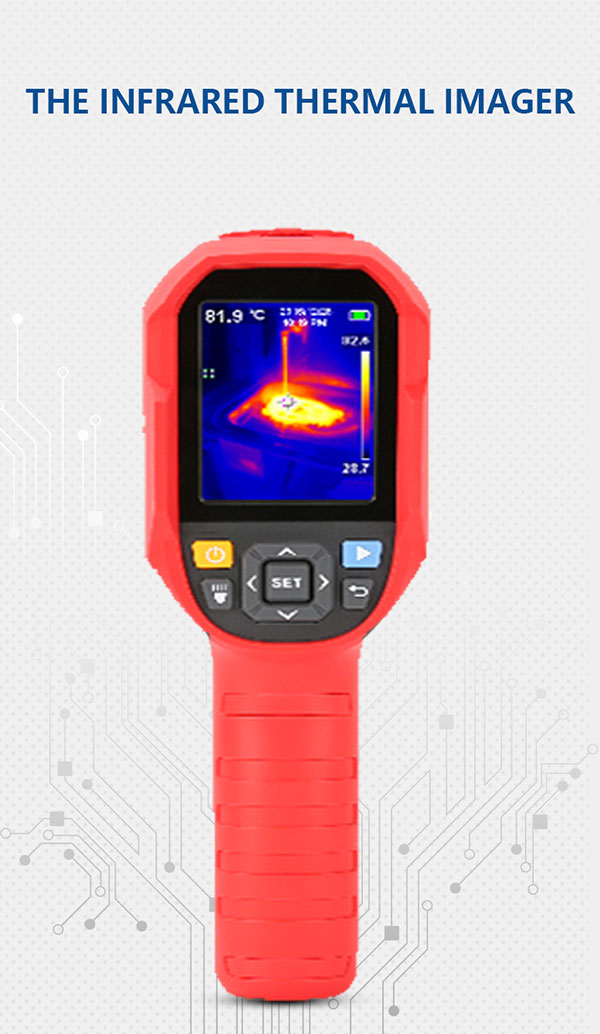

PQWT CX320 Thermal Imaging Lub Koob Yees Duab
